Live Status

Summary

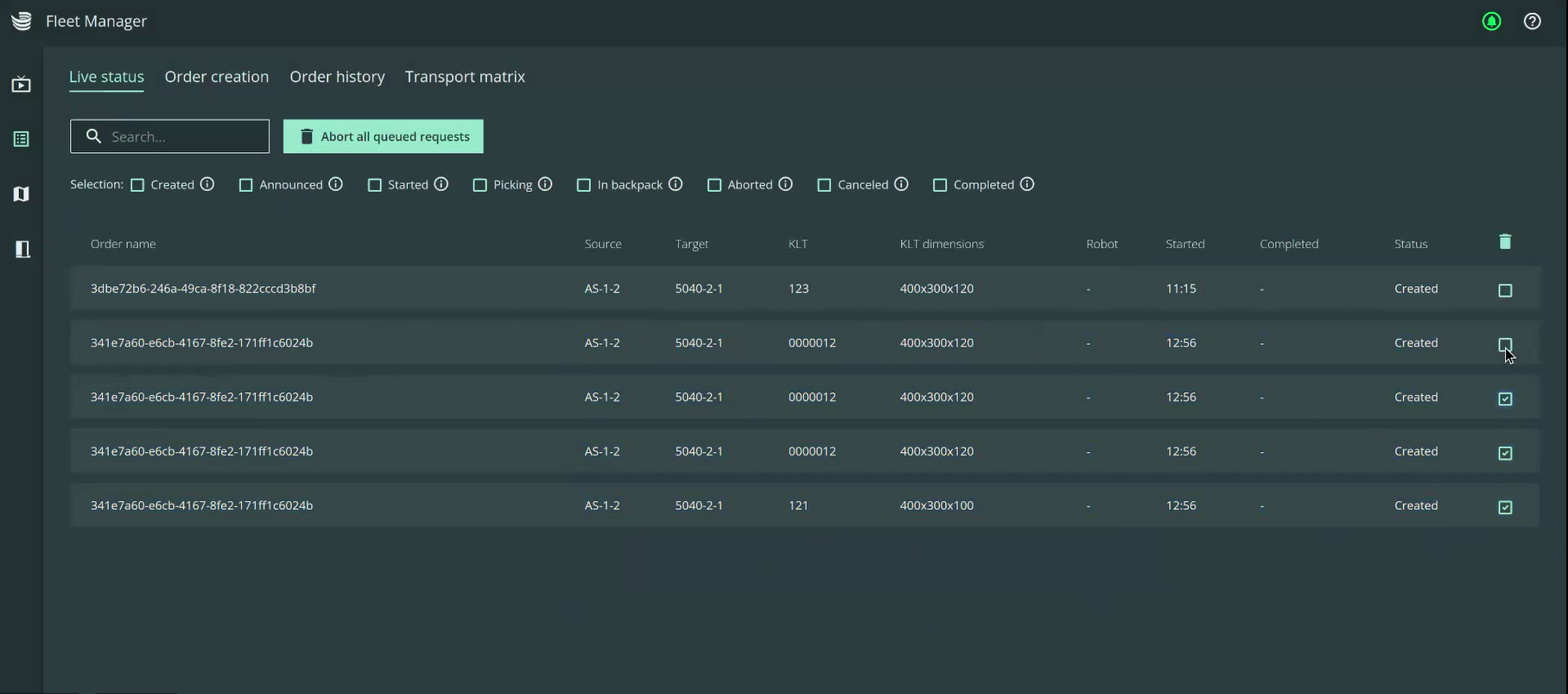

The Order Manager displays the live status of all queued requests, including detailed information about each of them.

Table description

• Order name (collective transport order): automatically generated (if not assigned)

• Source: Name, handover station

• Target: Name, handover station

• KLT: Affected item

• KLT dimensions: Length, width, height of the item

• Robot: Assigned robot

• Start: Start of the order (date, time)

• Completed: Completion of the order (date, time)

• Status: Current status of the request (see filtering options)

Functionalities

• Use the following options to filter the table by order status (the tooltip also describes each status):

  • Created: The request has been created and is ready to be batched

  • Announced: The request has been announced, but is not yet ready to be batched

  • Started: The request has been batched and was assigned to a robot

  • Picking: The item is currently being picked

  • In backpack: The item is in the backpack of a robot.

  • Aborted: The robot failed to pick the item.

  • Canceled: The request has been canceled by a user.

  • Completed: The item was delivered to the target.

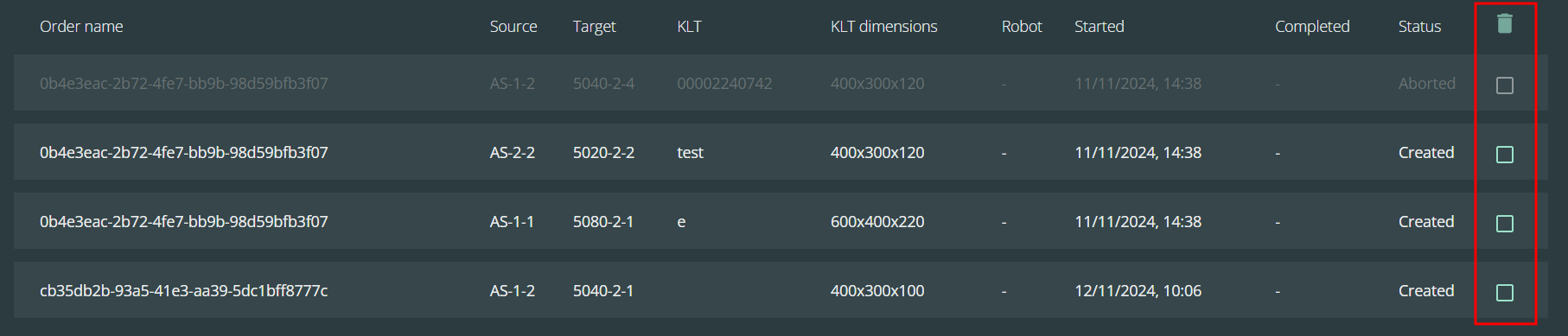

• You can delete all or individual requests using the icon on the right-hand side of the table. Requests that are already being transported by the robot (i.e. the KLT is in the backpack), can no longer be deleted.

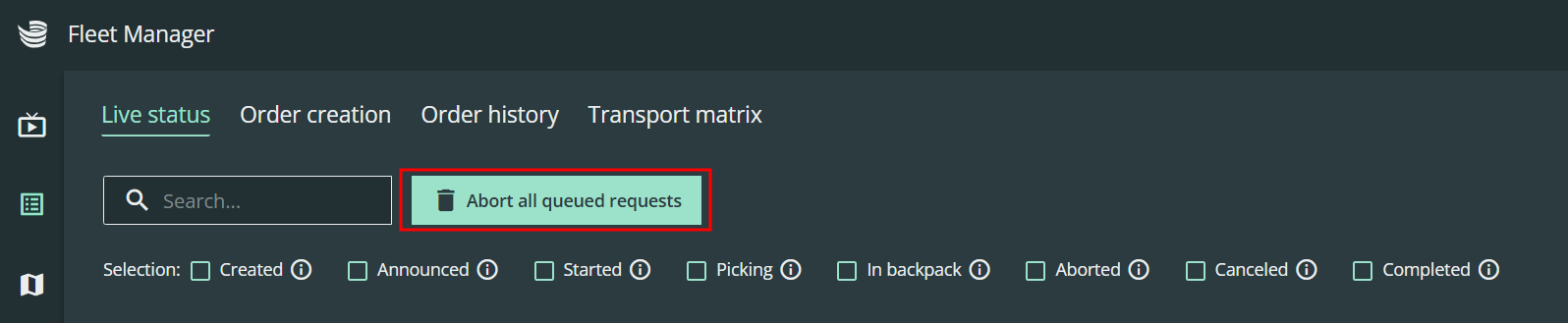

• All requests can be deleted using the button next to the search box.

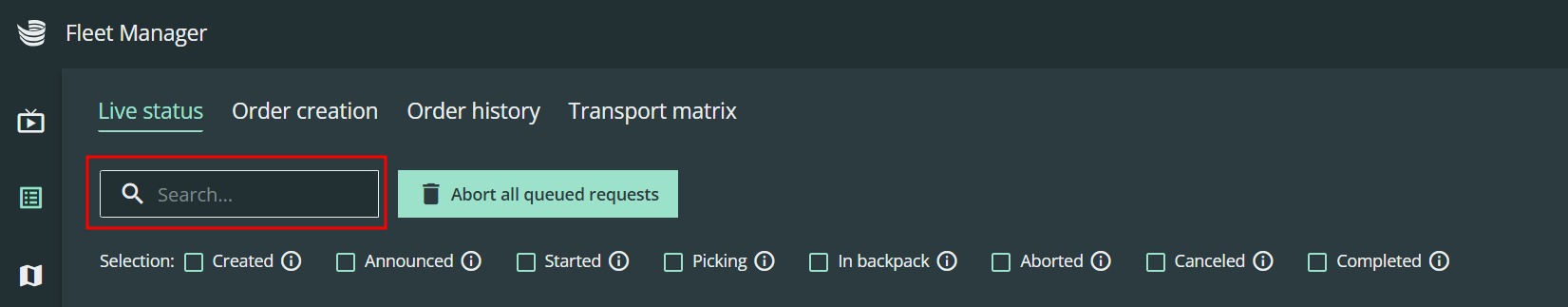

• The search box makes it possible to find single request information inside the table.
