How to store correctly in a TORU environment
Different SKU boxes

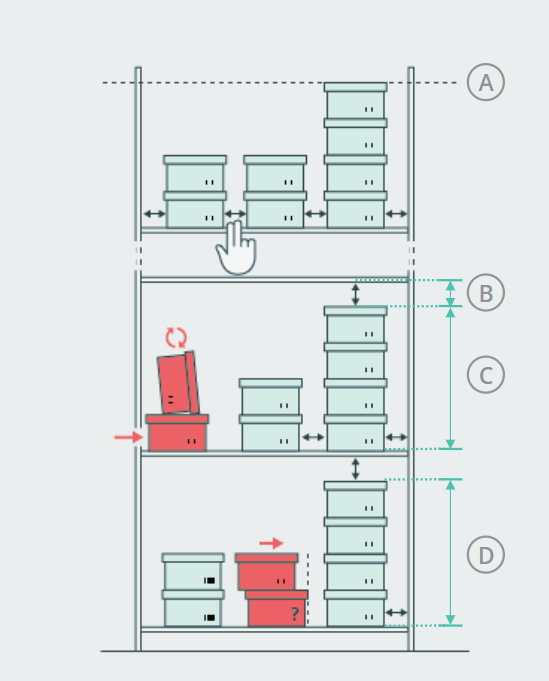

Box storage guidelines |
| Unstacking required | No unstacking required |
|---|---|---|---|
Max. height | A | 2500 mm | 2500 mm |
Min. free space above top edge of item | B | 40 mm | 40 mm |
Max. number of boxes per stack | C | 3 | 6 |
Max. number of boxes per stack for lowest shelf layer | D | 2 | 6 |

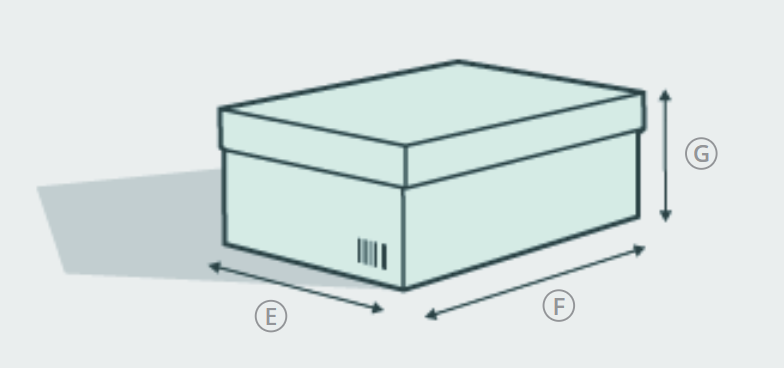

Box sizes |
| Minimum | Maximum |
|---|---|---|---|
Width | E | 100 mm | 280 mm |
Length | F | 100 mm | 390 mm |
Height | G | 80 mm | 145 mm |

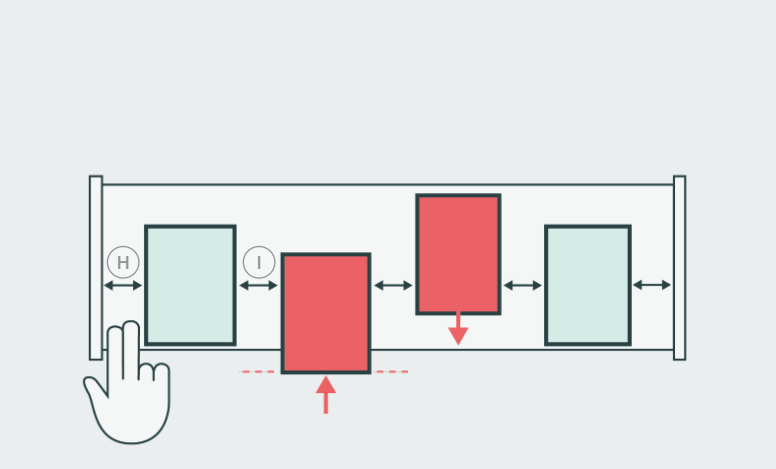

Alignment |
| Minimum |
|---|---|---|
Minimum distance between box and rear edge of shelf | H | 30 mm |
Minimum distance between boxes | I | 30 mm |
The boxes should be placed directly against the front edge of the shelf layer, ensuring they do not stick out or leave any gaps between the box and front edge of the shelf layer. | ||
